indoor flyer " HANGER RAT " ......with RC...

[NF]

...............
............. .......akhirnya.......90 % siap maiden........

[NF]

tinggal pasang batere , cari cg dan test flight.........

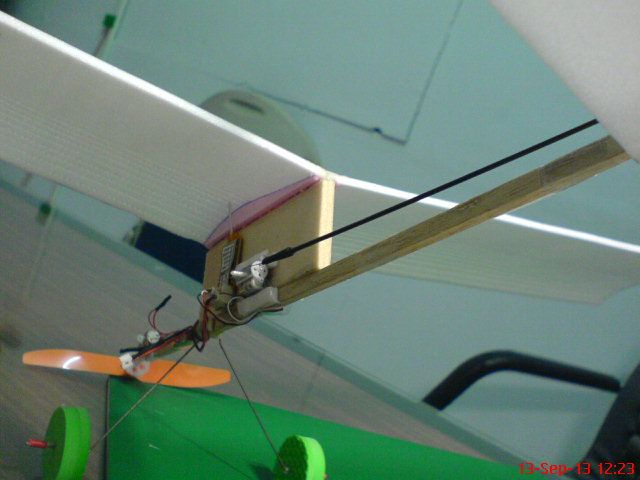

untuk servo linier , terpaksa pake carbon pancing

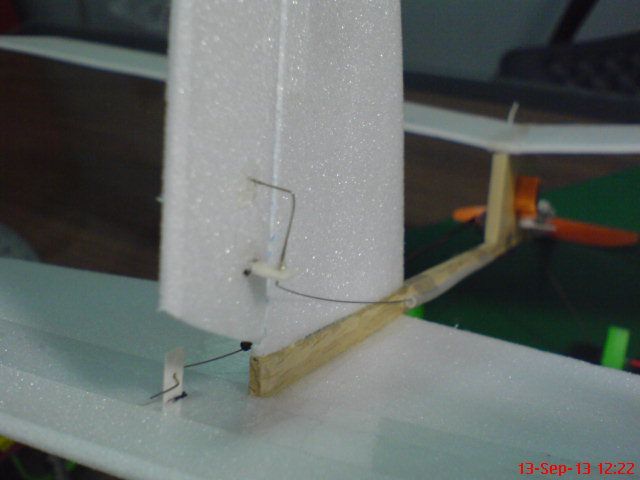

dan untuk ruder , bisa pake guitar metal string..........

[NF]

........ ........
.........first maiden yg sukses , all trim neutral , 55% throttle airborne , 65% cruising , 80% plastik dudukan gearbox terbang sendiri krn panas dan lepas dari body motor
tinggal :
1. lem gearbox biar ga lepas
2. beri warna yg kontras , terbang indoor dgn warna foam (putih) = sering disorientasi.
>>>****>>>3. bikin dudukan HP buat pasang di tripod biar bisa rekam videonya , tadi ga ada rekaman > single fighter....yg ada petugas parkir grj........

.....so.........lets work again.............

[NF]

...........
.....buat baterebox...............

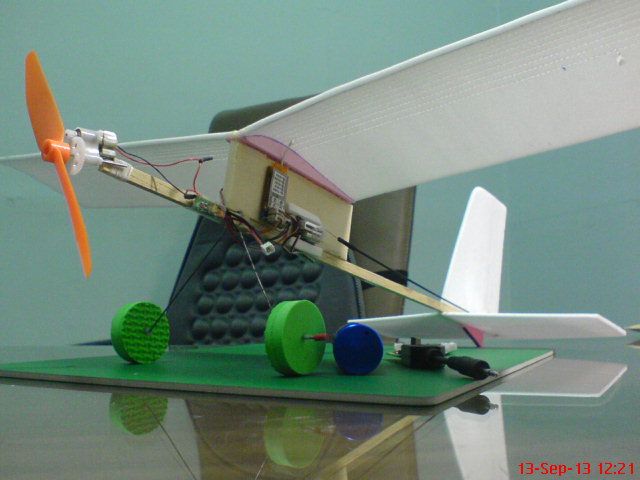

............dan penampakan akhir.......

[NF]

ntar senin , short videonya baru ada .
semalem si HR crash nabrak tembok krn ruangan rada gelap , prop spindle bengkok , besok mo beli matabor dulu buat ganti

[nadh]

pakdhe nf mau nanya untuk elektronik pake apa. RX dan kelengkapannya....

[NF]

Pakai rx micronya orange , servo kelas 2,5 grm ,speed control dan dapur pacu dari hobby king ,batere turnigy nanotech 180mah

[iwan21]

Pakai rx micronya orange , servo kelas 2,5 grm ,speed control dan dapur pacu dari hobby king ,batere turnigy nanotech 180mah

saya bantu tampilin ya

rx nya

Super light weight 2.0g!
Voltage: 3.6~9v
Compatible with DSM2 1024/2048 aircraft radio and module systems
4 Channels

servonya

Weight: 1.7 g
Voltage: 3.7V~4.2V

ESCnya

Weight with wires: 1.6g
Voltage Range: 2.6~5.5v
Low Voltage Cut Off: 2.75v
Max Continous Current: 3A

motornya

Type: Brushed
Weight: 3.3g
Max current: 1.8A
RPM: 3V/40,000rpm at no load
Suggested prop: GWS 4530

baterenya

Capacity: 160mAh
Voltage: 1S1P / 1 Cell / 3.7V
Weight: 4.5g (including wire, plug & case)

[NF]

trims suhu , udah nampilin parts yg dipakai....

[NF]

ini video second maiden si Hanger Rat Rc

https://www.youtube.com/watch?v=NBn8aRVYxtw
