Re: Hom Med ControlLer Kwat kOpteR

Post by dino »

rachmatjeny wrote:
dino wrote:
rachmatjeny wrote:eh tapi yg pake vtail tetep kan om? :plk :plk


tetep :ha3 :ha3 :ha3 buat ngelatih orientasi :ha3 :ha3 :ha3 tak gunakan 2 gyro di aileron tak psang sbelom esc :ha3 :ha3 elev ngk pk gYrO :whoaa

loh 2 gyro di aileron? elevator gak pake?
walah... apa iya emang begitu? :tlt


:whoaa :whoaa :whoaa Gyronya kRang bOz :flu :pyg jd dpasang aj pa adanya dlO yg pting rda stabiL dLo aj
Top
User avatar
ridwanitb
Airman
Airman
Posts: 49
Joined: 17 Feb 2010, 09:55

Re: Hom Med ControlLer Kwat kOpteR

Post by ridwanitb »

Ikut nyimak ya om... :tlt :tlt :tlt
Top
User avatar
rachmatjeny
Captain
Captain
Posts: 1672
Joined: 19 Mar 2009, 21:55
Location: Depok
Contact:
Contact rachmatjeny

Re: Hom Med ControlLer Kwat kOpteR

Post by rachmatjeny »

jadi biji mane bang suhu?
pake board HK ya?
Top
User avatar
dino
Major
Major
Posts: 1791
Joined: 07 Jun 2008, 18:23
Location: jatim park
Contact:
Contact dino

Re: Hom Med ControlLer Kwat kOpteR

Post by dino »

:tlt :tlt :tlt utk memperingan kerja jempOl dri pd pk gYro harga sMa mdingan pk HK bOaR.... :ha3 si babi hutan :hah :ha3 :ha3 :ha3 :ha3
Top
User avatar
dino
Major
Major
Posts: 1791
Joined: 07 Jun 2008, 18:23
Location: jatim park
Contact:
Contact dino

Re: Hom Med ControlLer Kwat kOpteR

Post by dino »

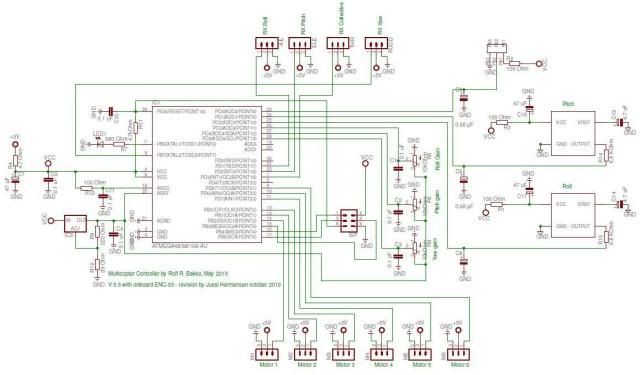

:tlt :tlt :tlt upgrade aj m.kOmpresOrnya pk atmel 168 jd dah KK bLu3 :ha3 :ha3 :ha3

nih tak ksih gambarnya..... byar mempermudah...pengerjaan.... :mwr


AVR uplOdernya http://www.atmel.com/forms/software_dow ... 4Setup.exe

GyrO ... pNya..mu.... RATA

:tlt :tlt :tlt mungkin suhu2 yg LaeN ad yg mo nyumbang hex upLodnya monGGo.... :mwr :ngl :ngl
Last edited by dino on 02 Jun 2011, 09:49, edited 2 times in total.
Top
User avatar
dino
Major
Major
Posts: 1791
Joined: 07 Jun 2008, 18:23
Location: jatim park
Contact:
Contact dino

Re: Hom Med ControlLer Kwat kOpteR

Post by dino »

:tlt :tlt Image x 4 ekor = kWatkOpter :pyg
Top
User avatar
rachmatjeny
Captain
Captain
Posts: 1672
Joined: 19 Mar 2009, 21:55
Location: Depok
Contact:
Contact rachmatjeny

Re: Hom Med ControlLer Kwat kOpteR

Post by rachmatjeny »

dino wrote::tlt :tlt :tlt upgrade aj m.kOmpresOrnya pk atmel 168 jd dah KK bLu3 :ha3 :ha3 :ha3

nih tak ksih gambarnya..... byar mempermudah...pengerjaan.... :mwr


AVR uplOdernya http://www.atmel.com/forms/software_dow ... 4Setup.exe

GyrO ... pNya..mu.... RATA

:tlt :tlt :tlt mungkin suhu2 yg LaeN ad yg mo nyumbang hex upLodnya monGGo.... :mwr :ngl :ngl


HK nanggung2 amet sih ya.. kalo harga segitu tinggal tambain acce 20$ lagi jadi total 45$ saya juga masih mau beli kok :ngl
tapi apa iya program KK bisa plek masuk ke situ ya?
Top
User avatar
dino
Major
Major
Posts: 1791
Joined: 07 Jun 2008, 18:23
Location: jatim park
Contact:
Contact dino

Re: Hom Med ControlLer Kwat kOpteR

Post by dino »

:tlt :tlt :tlt cba sHaring ttg si ACC3 nya SUHU ....... :wek
Top
ddmt
trainee
trainee
Posts: 23
Joined: 08 Mar 2007, 22:14
Location: Denpasar, Bali
Contact:
Contact ddmt

Re: Hom Med ControlLer Kwat kOpteR

Post by ddmt »

kkmulticopter board dari hobbyking bisa kok utk hexa, tinggal di tambah (solder) aja konektor utk motor ke 5 & 6. Lalu tinggal download aja firmware utk hex and install pake programmer MCU. Sayangnya karena MCU di boardnya hobbyking cuma ATMEGA48 nggak bisa pakai firmware nya dari kkmulticopter.kr (minsoo kim's firmware) karena perlu memory yg lebih besar.
Top
ddmt
trainee
trainee
Posts: 23
Joined: 08 Mar 2007, 22:14
Location: Denpasar, Bali
Contact:
Contact ddmt

Re: Hom Med ControlLer Kwat kOpteR

Post by ddmt »

ipin17 wrote:Iya om klo punya hk maksimal 4 motor, entah punya hk itu apa bs di upgrade firmwarenya kemudian hari, siapa tau kedepannya controller kk support gps, klo gak bisa diupdate berarti not worthed, tp klo bisa ya worthed banget buat yang hanya minat sampai 4 axis aja. Keunggulan 6 axis/6 motor itu apabila salah satu motor mati, si multicopter gak langsung terjun bebas karena 5 motor lainnya masih mampu untuk meng handle, dan tentu saja lebih stabil.

Benar kalau pakai 6 motor, 1 motor mati masih bisa terbang stabil, tapi itu kalau konfigurasinya Y6, kalau flat hexa kemungkinan besar akan tetep susah dikendalikan. Untuk fun factor, 4 motor saja sdh cukup :)
Top
