Quadcopter Kebelet versi minimalis

[Wind Raider]

Daftar komponen utama :

HobbyKing Quadcopter Control Board V2 ................ 1 pc >> http://www.hobbyking.com/hobbyking/stor ... duct=19534
ESC HK SS series 18 - 20 A ............................... 4 pcs >> http://www.hobbyking.com/hobbyking/stor ... oduct=6457
2210N 1000Kv Brushless Motor............................ 4 pcs >> http://www.hobbyking.com/hobbyking/stor ... oduct=8621
Prop 9x5 ( CCW / 1 paket isi 5 ) ........................ 1pack >> http://www.hobbyking.com/hobbyking/stor ... duct=11323
Prop 9x 5R ( CW / 1 paket isi 5 ) ....................... 1 pack >> http://www.hobbyking.com/hobbyking/stor ... duct=11322
Prop saver with band 3mm (1 paket isi 10 )............ 1 pack >> http://www.hobbyking.com/hobbyking/stor ... oduct=8240
Baterry : Turnigy 2650mAh 3S 20C Lipo Pack .......... >> http://www.hobbyking.com/hobbyking/stor ... oduct=9271


Aksesoris yang lain yang mungkin diperlukan :
Polyester Velcro Peel-n-stick adhesive side V-STRONG
Peel-n-stick foam tape.
Konektor ESC
Kabel konektor dari rx ke controller board

[Wind Raider]

Dimensi dasar Quadcopter Kebelet

[Wind Raider]

Manual HK Quadboard bisa di download di : http://www.hobbyking.com/hobbyking/stor ... 478X19.pdf

BE CAREFULL , WAKTU SETTING MOTOR PROPELLER HARUS DILEPAS ....!!!!
SAFETY FIRST !!!

[Wind Raider]

Wah kalau terbangnya malam.......bisa dibilang UFO niy......................

Ini mirip ndak pak ??


Video terbang campuran ( indoor , outdoor , night fly )

[aseperyana]

Daftar komponen utama :

HobbyKing Quadcopter Control Board V2 ................ 1 pc >> http://www.hobbyking.com/hobbyking/stor ... duct=19534
ESC HK SS series 18 - 20 A ............................... 4 pcs >> http://www.hobbyking.com/hobbyking/stor ... oduct=6457
2210N 1000Kv Brushless Motor............................ 4 pcs >> http://www.hobbyking.com/hobbyking/stor ... oduct=8621
Prop 9x5 ( CCW / 1 paket isi 5 ) ........................ 1pack >> http://www.hobbyking.com/hobbyking/stor ... duct=11323
Prop 9x 5R ( CW / 1 paket isi 5 ) ....................... 1 pack >> http://www.hobbyking.com/hobbyking/stor ... duct=11322
Prop saver with band 3mm (1 paket isi 10 )............ 1 pack >> http://www.hobbyking.com/hobbyking/stor ... oduct=8240
Baterry : Turnigy 2650mAh 3S 20C Lipo Pack .......... >> http://www.hobbyking.com/hobbyking/stor ... oduct=9271


Aksesoris yang lain yang mungkin diperlukan :
Polyester Velcro Peel-n-stick adhesive side V-STRONG
Peel-n-stick foam tape.
Konektor ESC

Mulai menabung neh...!!!!

[MARTINBARU]

mantap,,jadi keracunan nih

[candratriadnyana]

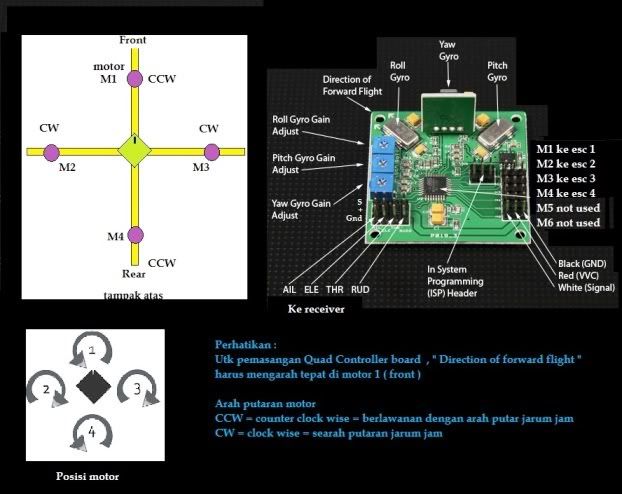

Quadcontrol board buatan HK




Arah putar baling2 menurut manual dari HK Quad board
Untuk arah putar spt ini , ternyata saya harus meng-invert channel 2 dan channel 4
Alhasil utk mengaktifkan board : stick throttle dan rudder harus ke kiri pojok paling bawah ( berlawanan dengan petunjuk manual )

wah ternyata ada quad control yang udah jadi ya dan kayaknya MURMER,
kalau boleh tahu berapaan om lumayan buat exsperimen vtol yang lg macet karena kepepet dana
lantaran muti beli tiga giro.
kalau ndak salah liat ,itu gaget udah ada gironya tiga onboard

[Wind Raider]

@aseperyana : kudu cepet soalnya sering backorder terutama esc nya
@martinbaru : worth a try pak
@candratriadyana : iya memang lebih praktis dan murah , dapat 3 gyro built in .. harganya sekitar 25 dollar ( belum termasuk ongkir )


Quantity Stock Product description Price
1 QUAD-CON16K - HobbyKing Quadcopter Control Board V2 .. $24.79
1 OR019-00501-3 - Prop Saver w/ Band 3mm (10pcs) $2.71
4 HK-SS20A - Hobbyking SS Series 18-20A ESC $27.08
4 AX-2210N - 2210N 1000Kv Brushless Motor $30.20
1 H9012A - 9x5R Propellers (5Pcs.. $3.04
1 H9011A - 9x5 Propellers (5Pcs/Bag) $2.24
1 Turnigy 2650mAh 3S 20C Lipo Pack $10.82
Total: $100.88
Note harga bisa beda2 dikit ....
Total berikut ongkir kira2 $120 dollar ( kurang lebih 1. 080.000 )

[aseperyana]

@aseperyana : kudu cepet soalnya sering backorder terutama esc nya
@martinbaru : worth a try pak
@candratriadyana : iya memang lebih praktis dan murah , dapat 3 gyro built in .. harganya sekitar 25 dollar ( belum termasuk ongkir )


Quantity Stock Product description Price
1 QUAD-CON16K - HobbyKing Quadcopter Control Board V2 .. $24.79
1 OR019-00501-3 - Prop Saver w/ Band 3mm (10pcs) $2.71
4 HK-SS20A - Hobbyking SS Series 18-20A ESC $27.08
4 AX-2210N - 2210N 1000Kv Brushless Motor $30.20
1 H9012A - 9x5R Propellers (5Pcs.. $3.04
1 H9011A - 9x5 Propellers (5Pcs/Bag) $2.24
1 Turnigy 2650mAh 3S 20C Lipo Pack $10.82
Total: $100.88
Note harga bisa beda2 dikit ....
Total berikut ongkir kira2 $120 dollar ( kurang lebih 1. 080.000 )

Ya, menabung sembali menunggu tumpangan suhu...
maksudnya mau numpang nitip beli, maklum orang kampung blom pernah belanja jauh-jauh...
tar malah repot ndak bisa pulang...

[candratriadnyana]

@aseperyana : kudu cepet soalnya sering backorder terutama esc nya
@martinbaru : worth a try pak
@candratriadyana : iya memang lebih praktis dan murah , dapat 3 gyro built in .. harganya sekitar 25 dollar ( belum termasuk ongkir )


Quantity Stock Product description Price
1 QUAD-CON16K - HobbyKing Quadcopter Control Board V2 .. $24.79
1 OR019-00501-3 - Prop Saver w/ Band 3mm (10pcs) $2.71
4 HK-SS20A - Hobbyking SS Series 18-20A ESC $27.08
4 AX-2210N - 2210N 1000Kv Brushless Motor $30.20
1 H9012A - 9x5R Propellers (5Pcs.. $3.04
1 H9011A - 9x5 Propellers (5Pcs/Bag) $2.24
1 Turnigy 2650mAh 3S 20C Lipo Pack $10.82
Total: $100.88
Note harga bisa beda2 dikit ....


Total berikut ongkir kira2 $120 dollar ( kurang lebih 1. 080.000 )

oke om makasi infonya tanggal muda mungkin saya minta tolong om buat mesenin
kalo bisa PM personal kontaknya makasi
