F-22-V911

Control=RC & WS <= 60 cm & AUW <=200 grams

Moderator: oyon

Post Reply
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

F-22-V911

Post by iwan21 »

Maksudnya ambil model F-22 Raptor, partnya pake punay WlToys V911

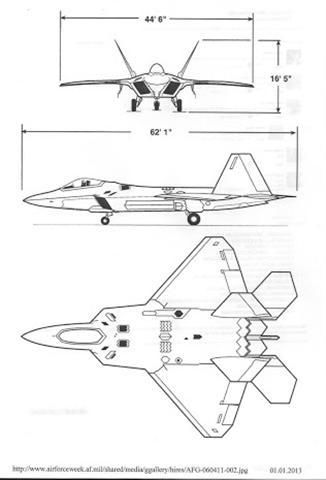

iseng aja sih pas nemu gambar ini

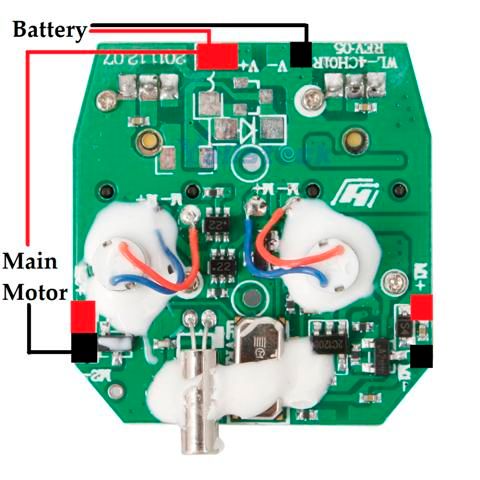

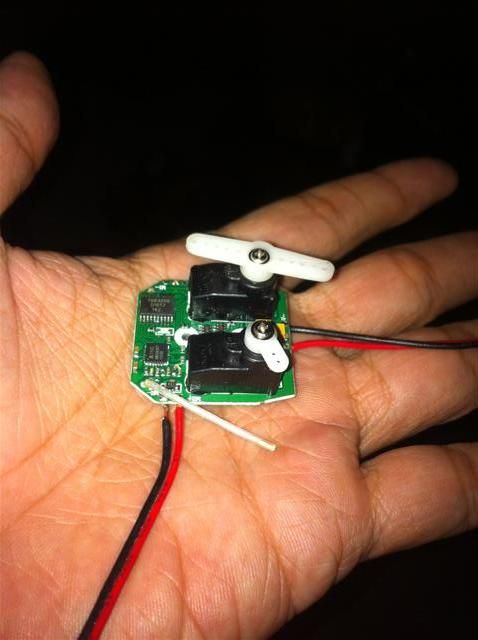

rx board V911 order dari banggood, dateng tanpa kabel2, jadi mesti nyolder2 sendiri.
yg disolder pin kabel2 ke batere sama main motor, tail rotor gak dipake karena ngikut gyronya


karena mau pake Aileron, Elevator dan throttle, servo horn aileron diganti
Top
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

Re: F-22-V911

Post by iwan21 »

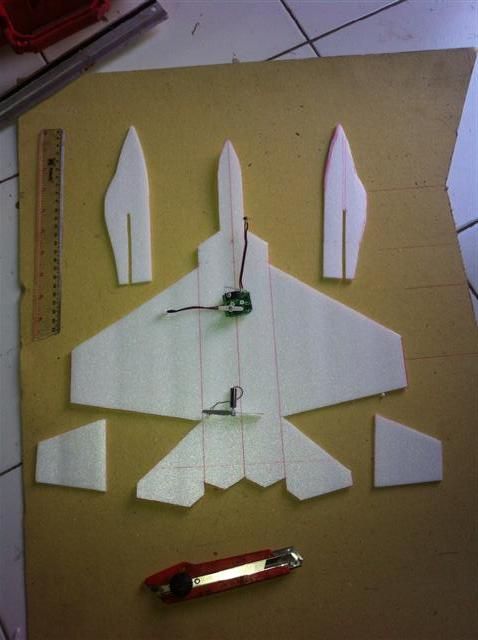

ngukur2 di polyfoam 3mm, dapet hasil :
wingspan 30cm
fuselage 40cm

rencana motor pake brushed 8,5 mm dg prop 2,5x1

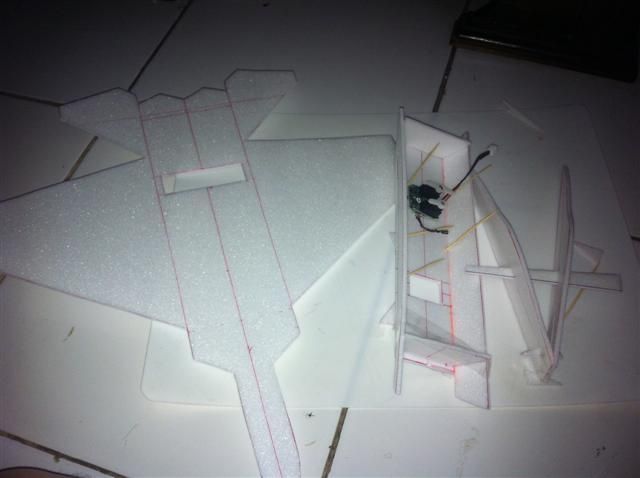

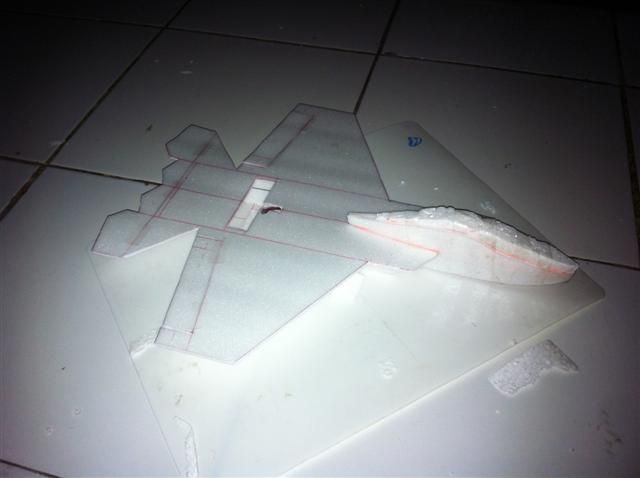

mulain ngelem2

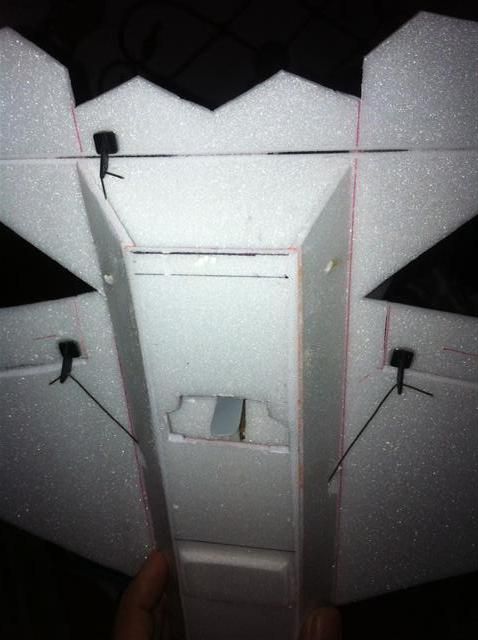

Rx bord dulu dilem didasar perut, kemudian pasang pushrod2


langsung tempel semua bagian dan lem

Top
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

Re: F-22-V911

Post by iwan21 »

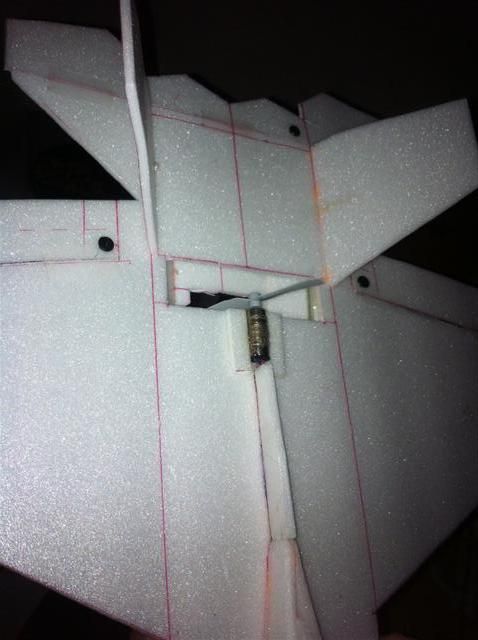

Motor dililit benang dulu baru di epoxy ke polyfoam, terjadi salah ukur lubang (propnya mentok) akhirnya propeler dikurangin ujungnya masing2 5mm


Top
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

Re: F-22-V911

Post by iwan21 »

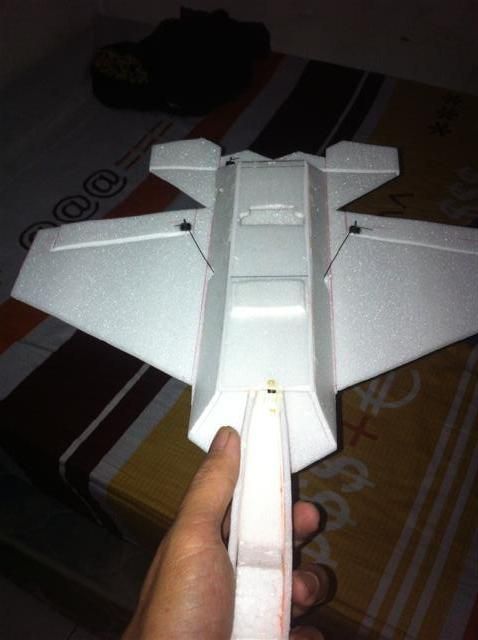

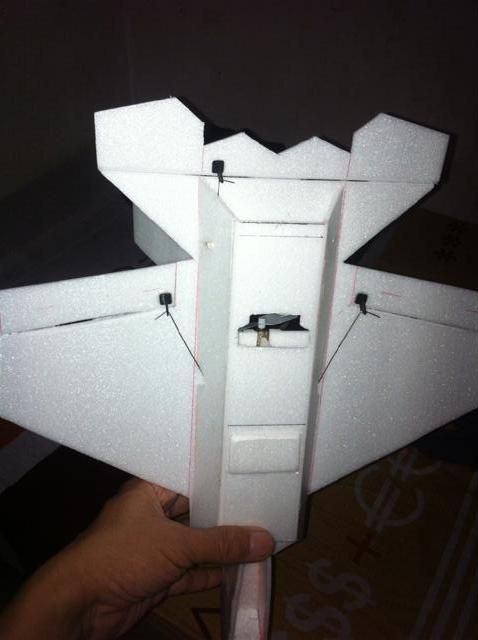

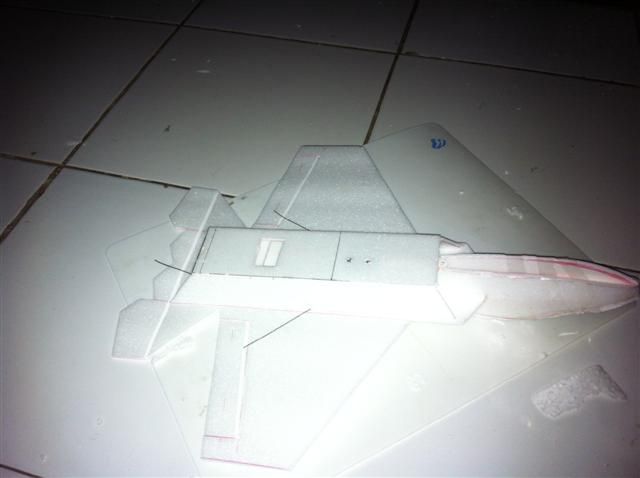

bagian bawah bersih, cuman pushrdo aja yg nongol

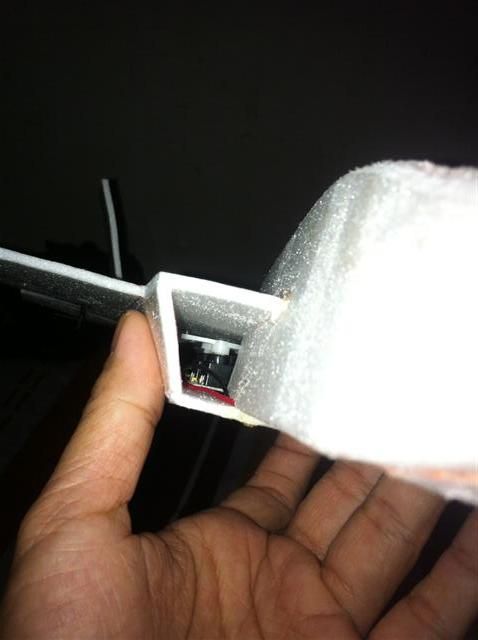

rx board diliat dari inlet duct
Top
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

Re: F-22-V911

Post by iwan21 »

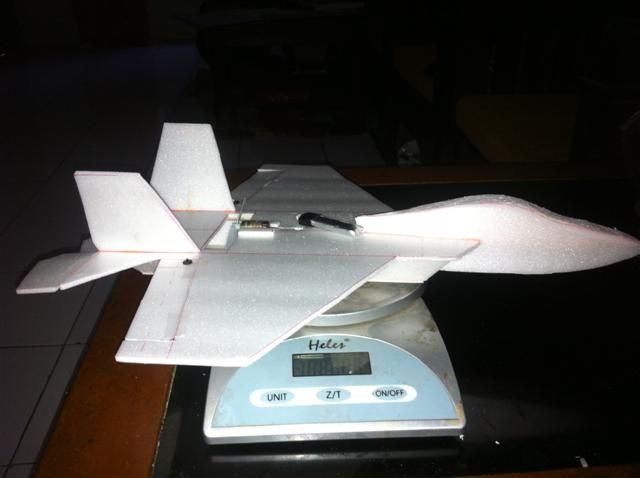

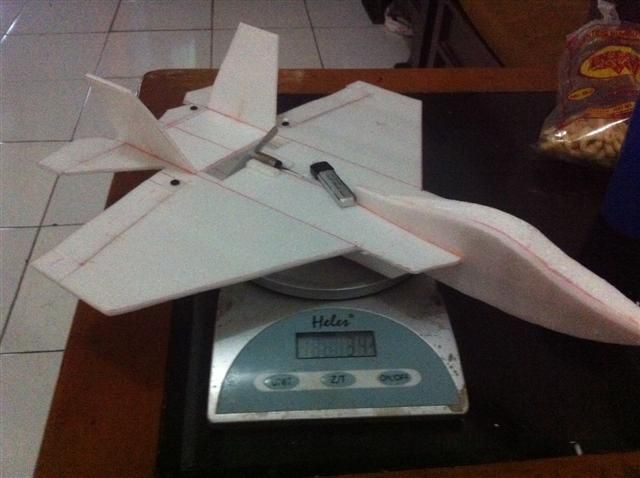

ditimbang, dg lipo 1s/200 mAH, dapet 34 gram



berat masing2
1. rx board + motor 8,5mm + propeler 2,5x1 + lipo 1s/200 mAH = 15 gram
2. body + pushrod2 = 19 gram
Top
User avatar
yagus
Second Lieutenant
Second Lieutenant
Posts: 1160
Joined: 21 Apr 2008, 15:29
Location: concat jogja
Contact:
Contact yagus

Re: F-22-V911

Post by yagus »

om roji :mtp
remote pakai v911 kah, atau bisa di binding ke tx yang lain
dan gimana caranya servonya bisa independen
Top
User avatar
Erwinsyah
Senior Airman
Senior Airman
Posts: 124
Joined: 06 Sep 2012, 21:13

Re: F-22-V911

Post by Erwinsyah »

ini yg ditunggu tunggu.. :gg :gg
Top
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

Re: F-22-V911

Post by iwan21 »

yagus wrote:om roji :mtp
remote pakai v911 kah, atau bisa di binding ke tx yang lain
dan gimana caranya servonya bisa independen



Ini om list remote2 yg kompatibel sama board V911, selain Turnigy 9X ( modul asli), Turnigy I6, HK I6 dan FlySky , kuncinya adalah " FlySky Protocol", kalo pake protocol ini semua bisa saling ngobrol ( yg udah saya test Turnigy 9X, FlySky T6SB, bisa saling silang ngobrolnya)

Align T-Rex 100S
Align T-Rex 100X
Great Wall 9928
Great Wall 9938
Great Wall 9958
Great Wall 9968
Hisky HFP80FS
Hisky HFP100FS
Ni Hui U807
Syma X1
WL TOYS v911
WL TOYS v911-Pro
WL TOYS v912
WL TOYS v912 Brushless Ed
WL TOYS v913
WL TOYS v913 Brushless Ed
WL TOYS v915
WL TOYS v929
WL TOYS v939
WL TOYS v949
WL TOYS v959
WL TOYS v646
WL TOYS v676
WL TOYS v686
WL TOYS F929
WL TOYS F939

catatan :
Great Wall = Xie Da

Kalo servo kan emang independen om
Top
User avatar
iwan21
Administrator
Administrator
Posts: 9640
Joined: 17 Jan 2007, 14:11
Location: Bekasi
Contact:
Contact iwan21

Re: F-22-V911

Post by iwan21 »

Jadi buat yg punya hely WL Toys V911 yg rusak , jangan dibuang, jadin pesawat mikro aja ( kepake semua itu dari remote, rx, motor dan lipo 1s, tinggal beli propeler GWS 2508 atau 2510 jdai deh pesawatnya
Top
User avatar
denysafari
Senior Master Sergeant
Senior Master Sergeant
Posts: 707
Joined: 25 Feb 2012, 14:25
Location: Cikarang ( kerja ) garut jawa barat ( asal )
Contact:
Contact denysafari

Re: F-22-V911

Post by denysafari »

Waduh anaknya dah nongol aja nih. Emaknya f22 yang sy bkin msih mojok di rumah. Hehe
