Bellanca Super Decathlon

Post by Wind Raider »

Ini pesawat yang khusus dibuat untuk meramaikan IAF 2007 Bandung

Specs :

Demension : Wing Span : 75 cm ; Length : 58 cm ; Height : 19 cm
Esc : Brushless 18 A
Motor : Outrunner Brushless Tower Pro BM2408-21.
Battery : Home made Lithium Ion atau Lipo (2 cells - 3 cells ; 800 mAH )
Servos : 2 esky micro servos for aileron ; 2 arrtech micro servos for stabilizer and rudder
Prop : 70 x 40
Auw : 380 - 400 grams
3 mm Coroplast for fuselage ; 2 mm coroplast for wing, stab , and fin


Tampak samping

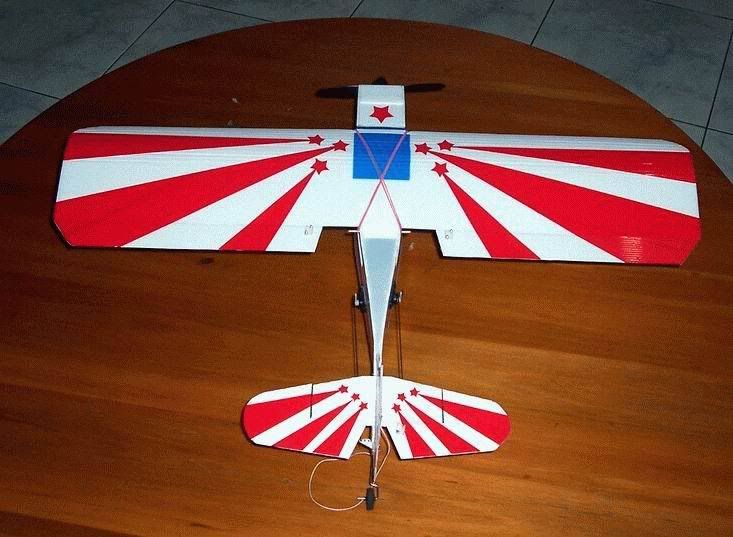

Tampak atas

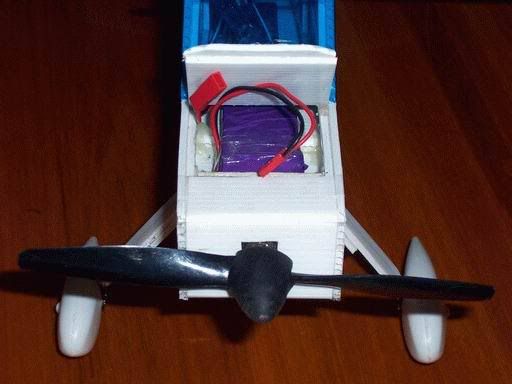

Tempat baterai ( pada waktu maiden pake bat hp 2 cell dan 3 cell )

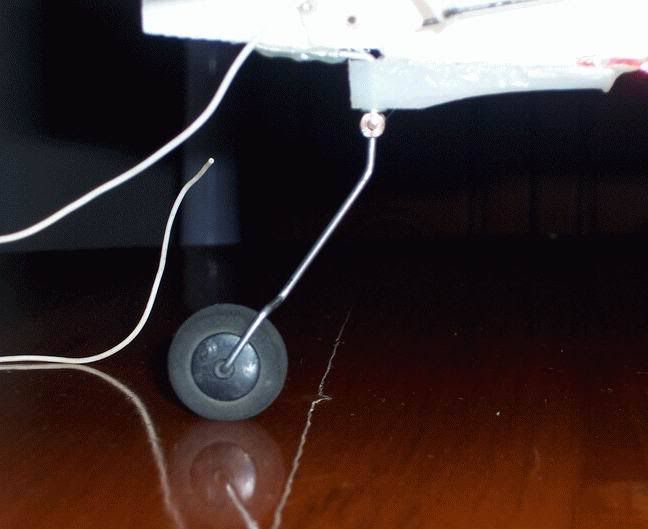

Steerable Tail
Last edited by Wind Raider on 10 Aug 2007, 09:58, edited 4 times in total.
Top
User avatar
Wind Raider
FOUNDER
FOUNDER
Posts: 2278
Joined: 16 Jan 2007, 17:04
Location: Cirebon
Contact:
Contact Wind Raider

Maiden Flight

Post by Wind Raider »

Rogging

Take Off




Last edited by Wind Raider on 17 Jan 2007, 21:13, edited 1 time in total.
Top
User avatar
tn
Staff Sergeant
Staff Sergeant
Posts: 214
Joined: 17 Jan 2007, 17:44
Location: seribu sungai (Banjarmasin)
Contact:
Contact tn

Post by tn »

boleh kah hamba pinang pesawat cantik itu ??
alamat rumah saya tau kan....?! wakakakakak
Top
User avatar
Wind Raider
FOUNDER
FOUNDER
Posts: 2278
Joined: 16 Jan 2007, 17:04
Location: Cirebon
Contact:
Contact Wind Raider

Post by Wind Raider »

tn wrote:boleh kah hamba pinang pesawat cantik itu ??
alamat rumah saya tau kan....?! wakakakakak


Pianangan diterima ; asal ngelamar datang sendiri di sini ; jangan lupa maharnya ...hehehe
Kapan rencana ke Jawa lagi ?
Top
User avatar
scratcher
Airman First Class
Airman First Class
Posts: 95
Joined: 22 Jan 2007, 13:15
Location: Banten

Post by scratcher »

Kalau pakai batre HP 2 & 3 cel masing2 tahan berapa lama Pak ? :lol: :lol:
Top
User avatar
tn
Staff Sergeant
Staff Sergeant
Posts: 214
Joined: 17 Jan 2007, 17:44
Location: seribu sungai (Banjarmasin)
Contact:
Contact tn

Post by tn »

Wind Raider wrote:Kapan rencana ke Jawa lagi ?


klo ada rejeki saya mau terbang di bandara bekasi pak....
Top
User avatar
Wind Raider
FOUNDER
FOUNDER
Posts: 2278
Joined: 16 Jan 2007, 17:04
Location: Cirebon
Contact:
Contact Wind Raider

Post by Wind Raider »

@scratcher :
Baterai hp ternyata kurang kuat pak ; kecuali maennya 1/2 throtle ...
Pada waktu narik arus 5 Ampere lebih sebentar aja drop voltasenya .
Mungkin batrai HPnya bukan yang original .

Akhirnya baterai saya ganti dengan lipo 800mAH 2 cell
Lumayanlah kira2 : 10 - 12 menitan

@tn : ditunggu lho hehehe
Top
User avatar
iwanr
Airman
Airman
Posts: 41
Joined: 18 Jan 2007, 13:06
Location: Jakarta

Post by iwanr »

Wind Raider wrote:
tn wrote:boleh kah hamba pinang pesawat cantik itu ??
alamat rumah saya tau kan....?! wakakakakak


Pianangan diterima ; asal ngelamar datang sendiri di sini ; jangan lupa maharnya ...hehehe
Kapan rencana ke Jawa lagi ?


Saya juga mau, abisnya coba2 bikin kagak pernah berhasil...
Power set nya dan servo sudah ada...
Top
User avatar
Wind Raider
FOUNDER
FOUNDER
Posts: 2278
Joined: 16 Jan 2007, 17:04
Location: Cirebon
Contact:
Contact Wind Raider

Post by Wind Raider »

@iwanr : bikin lagi aja pak sekalian di post disini .

Buat rekan2 yang ingin membuat decathlon SPAD ini ada link dari SPAD Forum :
http://www.chrisspad.com/forum/viewforum.php?f=14
Top
User avatar
Bozo
Airman
Airman
Posts: 25
Joined: 17 Jan 2007, 14:40
Location: Gading Serpong
Contact:
Contact Bozo

Post by Bozo »

Wind Raider wrote:@iwanr : bikin lagi aja pak sekalian di post disini .

Buat rekan2 yang ingin membuat decathlon SPAD ini ada link dari SPAD Forum :
http://www.chrisspad.com/forum/viewforum.php?f=14


Om...URL nya nda bisa di buka untuk plan decatlhon nya....
