JAPANESE Aircraft..............

Post by NF » 13 Jul 2010, 12:30

nemu buku data ttg pesawat dari negara jepang pada era WW2.........
cover depan................

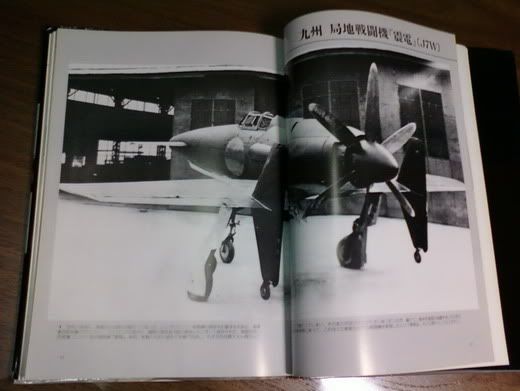

salah satu yg menarik ttg J7W.....

dapetnya dari penjual buku bekas..........................................., so............., don't forget utk sering mampir dari ngebongkar stoknya

Post by **iwan21** » 13 Jul 2010, 12:45

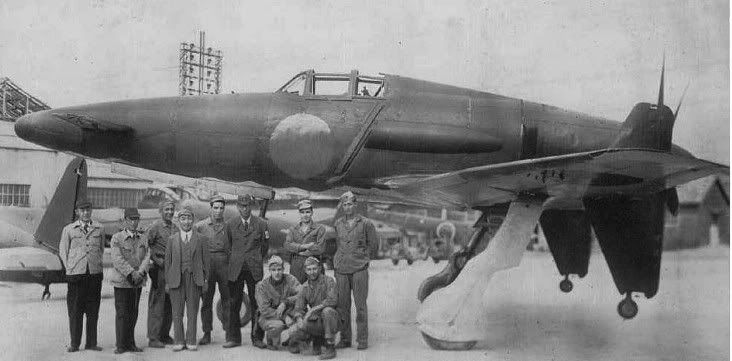

Kyushu/Kawanishi J7W Shinden ( ' magnificent lightning")
dibuat atas kebutuhan angkatan laut kekaisaran Jepang utk mengatasi pembom B-29 Sekutu
Pesawat ini dilengkapi dg 4 buah kanon 30m dihidung

data :
* Crew: one, pilot
* Length: 9.66 m (31 ft 8 in)
* Wingspan: 11.11 m (36 ft 5 in)
* Height: 3.92 m (12 ft 10 in)
* Wing area: 20.5 m² (220 ft²)
* Empty weight: 3,645 kg (8,019 lb)
* Loaded weight: 4,928 kg (10,841 lb)
* Max takeoff weight: 5,288 kg (11,663 lb)
* Powerplant: 1× Mitsubishi Ha-43 12, 1,589 kW (2,130 hp)

Performance

* Maximum speed: 750 km/h (469 mph)
* Range: 850 km (531 miles)
* Service ceiling: 12,000 m (39,360 ft)
* Rate of climb: 750 m/min (2,460 ft/min)
* Wing loading: 240 kg/m² (49lb/ft²)
* Power/mass: 0.32 kW/kg (0.20 hp/lb)

pesawat2 yg mirip :
* Ambrosini SS.4
* Saab 21
* Henschel P.75
* XP-55 Ascender
* XP-56 Black Bullet
* Miles Libellula

keterangan :
- dikumpulkan dari berbagai sumber

Post by NF » 13 Jul 2010, 12:57

trims suhu untuk tambahan datanya............
semua teks dibuku di tulis dlm huruf kanji.... #-o

Post by **iwan21** » 13 Jul 2010, 12:59

sama2 pakde, kendala emang di huruf kanji..

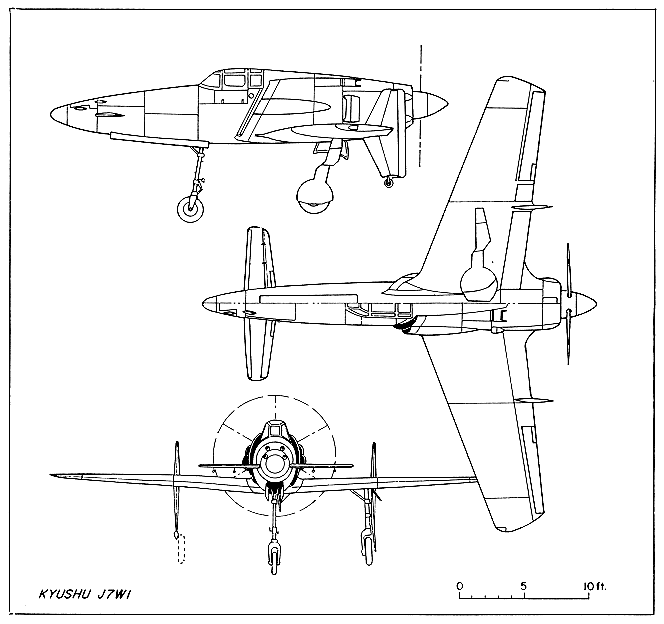

Kalu ada yg berniat bikin, ini ada gb posisi CG nya..

Post by NF » 13 Jul 2010, 13:23

....eeerrrrrr..........,kliatanya suhu dah mo coba ya ????????????????

Post by **iwan21** » 13 Jul 2010, 13:27

NF wrote:=P~ ....eeerrrrrr..........,kliatanya suhu dah mo coba ya ????????????????

bbeelllooooommmmmmm.........

yafet07 · Post by **yafet07** » 13 Jul 2010, 15:35

modelnya "agak" mirip saya punya... wing depan kecil... namanya long ez

Post by **iwan21** » 13 Jul 2010, 16:29

betul om Yaffet, J7W ini adalah embahnya long EZ..

Dhewe · Post by **Dhewe** » 14 Jul 2010, 12:04

iwan21 wrote:
NF wrote:=P~ ....eeerrrrrr..........,kliatanya suhu dah mo coba ya ????????????????

bbeelllooooommmmmmm.........

Cepetan dibikin homemade versi Bekasi dong pakdhe Roji....... =D>

Post by **Ravenchan** » 14 Jul 2010, 16:08

pesawat ini pakai sistem canard atau elevon ? sepertinya wing loadingnya cukup besar ya? jika memang canard, apakah bisa dirubah ke elevon saja?
